VGA 4x4 Matrix Switcher with Audio & RS-232

High-resolution matrix with RS-232, IR and front panel control
MPN: VGA4X4SW
VGA4X4SW Inquiry

+ Zoom In

Overview

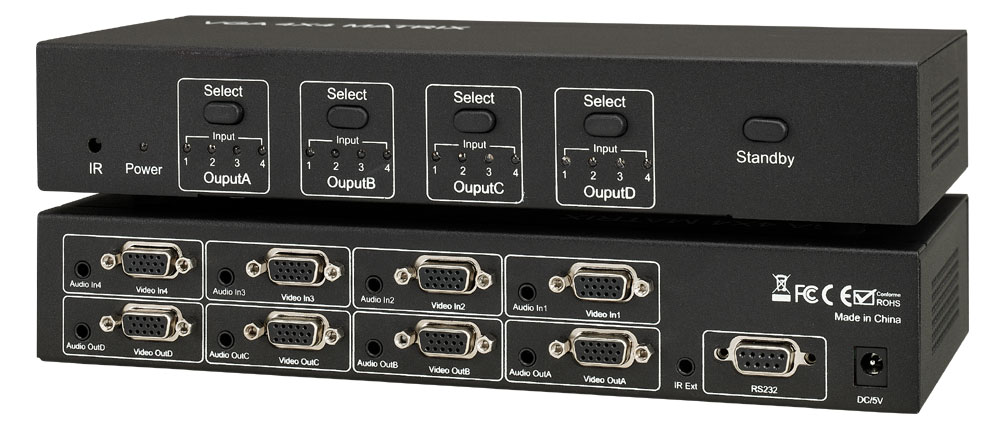

The KanexPro 4x4 VGA matrix switcher is designed to route high-resolution video signals from your computer or other video sources with stereo audio. The 15-pin HD connectors are convenient and cost-effective for all input/ output connections. In addition to the eight 3.5mm stereo jacks for stereo audio the matrix comes with full RS-232, IR remote and front-panel control allowing, operation from just one touch of a button for input/output selection.

The 4x4 VGA Matrix is ideal for use with environments such as corporate boardrooms, command and control centers, classrooms, restaurants, home theaters, and video conference rooms.

features

  • Switch any VGA source to any display with audio
  • Full HD 1080p(1920x1080@60Hz)
  • Stereo audio with 8x 3.5mm jack (4 input/4 output)
  • EDID Compliant
  • Control through RS-232, IR remote & front-panel buttons
  • Front panel LEDs for input/output signal presence
  • Rack mountable metal enclosure (rack ears not inlcuded)
  • Remote control included
  • 5VDC external power supply included

Specs

specs

Interface:

  • Input Transmitter:
    • VGA (15pin) x4
    • RS232 Female x1
    • 3.5mm Stereo x4
  • Output Receiver:
    • VGA (15 pin) x4
    • 3.5mm Stereo x4
    • IR Extender x1

Video Amplifier Bandwidth: 500 MHz

Vertical Frequency Range: 30-170Hz

Maximum Resolution: 1920x1200 /1080p at 60Hz

Power Supply: 5V DC@2A, 5W

Operating Temperature: 0°C to +70°C

Operating Humidity: 10% to 85 % RH (no condensation)

Storage Temperature: -10°C to +80°C

Storage Humidity: 5% to 90 % RH (no condensation)

Regulatory Approvals Converter: FCC, CE, UL

Regulatory Approvals Power Supply: FCC, CE, UL

Dimensions: 10.5”x4.5”x1.7” (267x115x45mm)

Total Weight: 2lbs (936g)

Warranty: 1 Year parts and labor

Note: Rack ears/ brackets not inlcuded

FAQ

Name:
Email Address:
Ask A Question:

   =

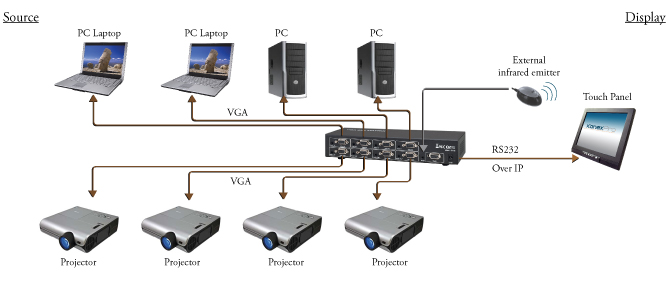

Diagram
