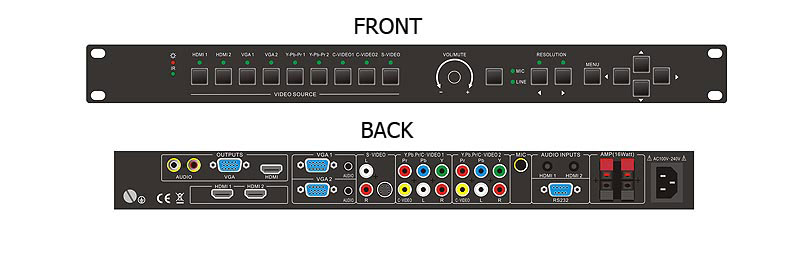

The KanexPro HDSC91D is a nine input, two output professional presentation switcher and scaler that, accepts and up-converts a wide range of video signals to high-resolution output rates. It comprises of one S-Video, 2 composite, 2 component, 2 VGA and 2 HDMI video inputs with stereo audio switching and breakaway. With the MIC input present the volume can be separately adjusted and set as a preset.
Compatible with several resolutions from XGA to WUXGA and 1080p/60 this scaler features a powerful scaling engine with the ability to scale any resolution in up or down trend.
Fully controllable through RS-232 commands, IR remote and front-panel buttons, this switcher will work with any third-party I/O configuration using public commands which allows saving and recalling via the front-panel, IR or through serial control at any time.
As an added feature, this switcher is also loaded with a built-in 16-Watts amplifier for driving loudspeaker systems directly from the unit, avoiding the cost and integration of adding an A/V receiver. The power to accept multiple inputs of different formats along with many advanced features like PIP makes the HDSC91D a true-presentation switcher that is an ideal cornerstone for mid-or-large sized A/V systems.
