6 Input Presentation Switcher & Scaler with Multi-channel Audio

Switch & Scale six inputs to one HD display
MPN: HDSC61D
HDSC61D Inquiry

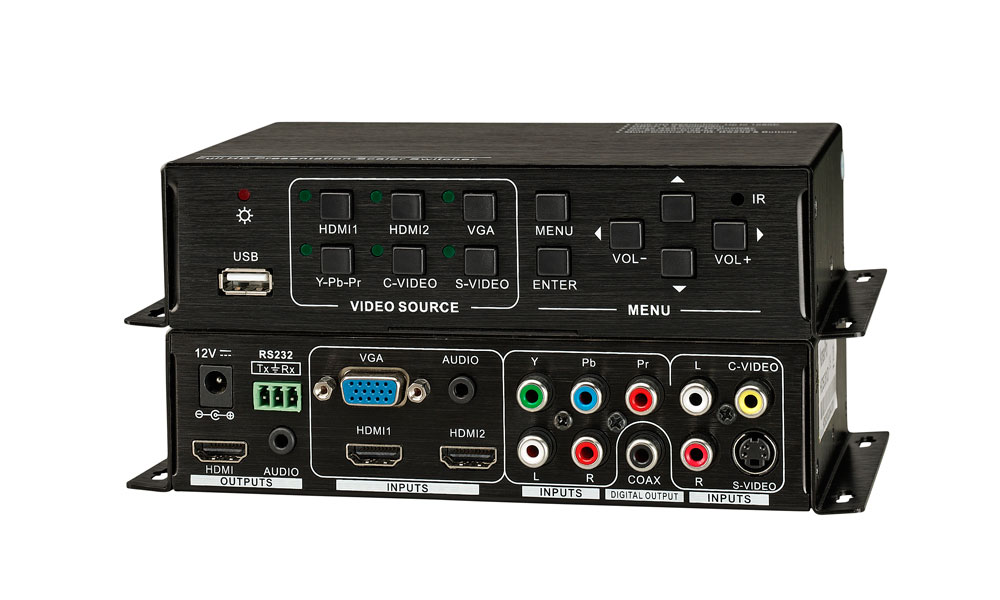

+ Zoom In


Overview

The KanexPro HDSC61D is a Mini Hi-def. Presentation Switcher and Scaler. It scales 6 video inputs (including 2xHDMI, 1xVGA, 1xComponent video, 1xC-video & 1xS-video), all to HDMI output, including the 3.5mm stereo audio and coax audio output.

The HDSC61D scaler is ideal for countless commercial applications such as video conferencing using various analog and digital video formats, educational facilities, boardrooms, control rooms and court-room applications.



features

  • Switch & Scale 6-input to a Hi-def display
  • HDCP 1.3 Compliant
  • EDID Compliant
  • Supports full HD 1080p (1920x1080@60Hz)
  • Computer resolutions: XGA and WXGA
  • Built-in USB for using flash disk drive (JPEG, MP3 support)
  • USB port - also used for firmware update
  • Seamless Switching between inputs
  • On-Screen Display for easy navigation
  • Powerful OSD function for full-control
  • Video parameter setting (color, hue, contrast, brightness and sharpness)
  • Built-in video preset function (news, entertainment, music, cinema)
  • Advanced volume setting (bass, treble, balance, sound mode) & audio mode presets
  • Video is compatible with NTSC 3.58, NTSC 4.42, PAL, and SECAM.
  • 4-channel audio follow or audio break away switching inputs
  • Audio is adjustable with audio level preset functions
  • Control via: IR, RS-232 and front-panel buttons
  • RS-232 compatible with any 3rd party control systems
  • Front-panel LEDs for system activity
  • Rack-mountable aluminum enclosure
  • IR Remote control included
  • Internal Universal power adaptable (100Volt-240Volt AC, 50/60Hz)

Specs

specs

Video Input   Video Output
Input

2 HDMI
1 VGA
1 component video
1 composite video
1 S-video ,1 USB for firmware update

 Output 1 HDMI

Input Connector 2 HDMI female
1 VGA (15 pin HD) female
5 RCA female
3 RCA female
4-pin mini DIN
Output Connector HDMI, female

Video Signal

HDMI 1.3
RGBHV, RGBs, RGsB, RsGsBs;
Y-Pb-Pr
NTSC 3.58, NTSC 4.42,PAL,
SECAM                        MPEG/AVI/JPG for USB Port

Video Signal HDMI 1.3

Video General
Resolution Range 1080P,1920*1080
720P; 1280*720
WXGA,1280*800
XGA, 1024*768

Bandwidth HDMI: 4.95Gbps(1.65Gbps per color)
Composite video: 150MHz
S-video: 150MHz
VGA: 375MHz
Maximum Pixel Clock 165MHz Switching Type Vertical interval
Switching Speed 200ns (Max.) Vedio  Impedance 75Ω
VGA Cross Talk -50dB@5MHz Input/Output Level 0.5V~2.0Vp-p
Gain 0dB
HDCP Compliant with High -bandwidth Digital Content Protection (HDCP) using DVI  and HDMI 1.2 standards
Audio Input   Audio Output
Input 4 stereo audio for line audio Output stereo audio for line audio
Input Connector 4 RCA for composite video, component video & audio; 3.5mm audio for VGA

Output Connector



1 x 3.5mm Stereo audio acting as a de-embedder

Audio Input Impedance  >10Ω Audio Output Impedance 50Ω
Audio General
Audio Connector  Mini Jacks; tip (L); ring (R ); sleeve (GND) Stereo Channel Separation  >80dB @1KHz
Frequency Response  20Hz~20K Hz CMRR >90dB @20Hz to 20K Hz
Control Parts
Control/Remote IR remote, buttons, Captive Screw RS-232, female D connector Pin Configurations 2 = TX, 3 = RX, 5 = GND

General
Temperature -20 ~ +70? Humidity 10% ~ 90%
Power Supply 100VAC ~ 240VAC, 50/60Hz Power Consumption 25W
Case Dimension W 6.2 x H 1.7 x D 3.9 in
(1/2 rack width)
Product Weight 1.1 lbs



FAQ

Name:
Email Address:
Ask A Question:

   =



Q: does this unit (MPN: HDSC16D) support PIP or side by side?
A: No, this scaler has only one output, does not support PIP or side by side.

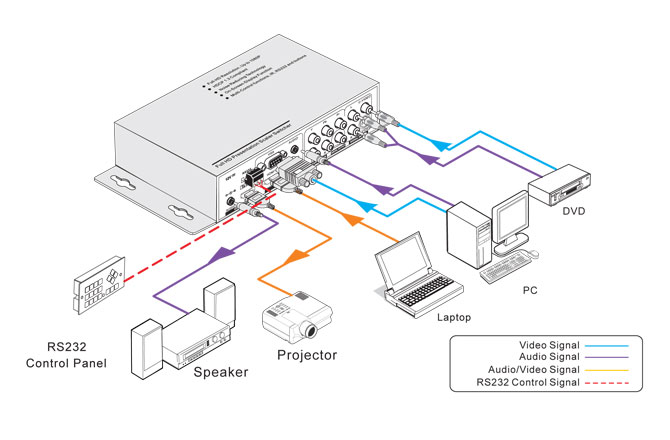

Diagram

Diagram

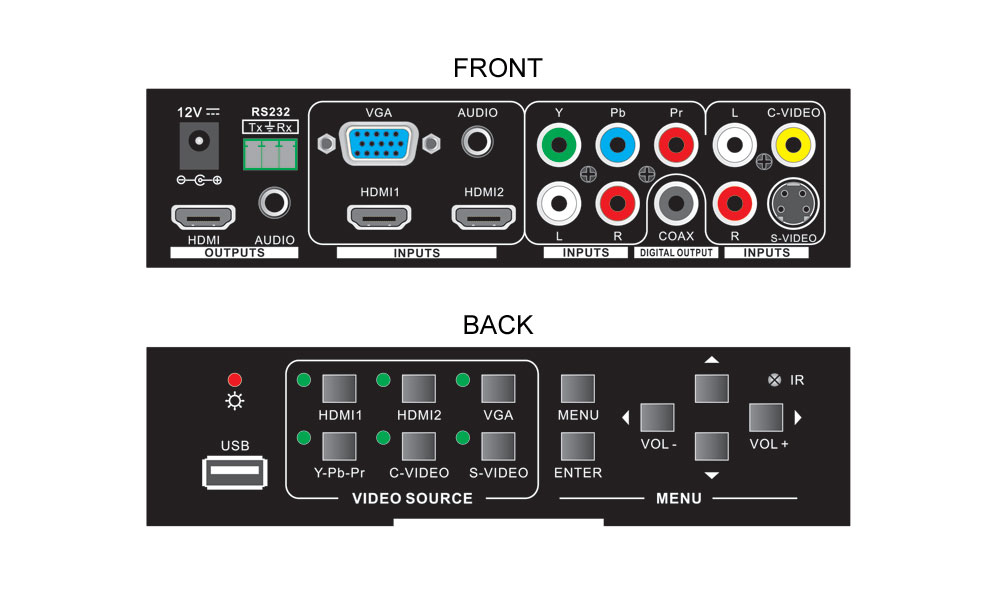

Panel

Panel
