HDBaseT® Presentation Switcher & Scaler w/ 12 inputs

Switch & Scale 12-inputs to 2-high-resolution displays
MPN: HDSC12D
HDSC12D Inquiry

+ Zoom In


Overview

The KanexPro HDSC12D is an all-in-one switcher scaler designed with twelve inputs; (C-Video, S-Video, YPbPr, VGA and HDMI). Switch, scale and extend to high-resolution HDMI or VGA formats.

HDBaseT incorporated – the scaler includes an external receiver over CAT6-STP based on HDBaseT technology. HDMI output can be extended carrying high defintion video and multi-channel audio up to 230 feet (70m).

Converging IT with AV applications, the HDSC12D scaler integrates easily in various analog to digital applications such as when used in lecture halls, conference room airports, hotel lobbies, restaurants, pubs, healthcare facilities and control centers.

Note: The HDMI output on this scaler will not support Surround sound or Dolbt Digital 5.1.

features

  • Switch & Scale 12-inputs to 2-high-resolution displays
  • 4 HDMI Inputs
  • 4 VGA Inputs with 3.5mm Audio
  • 1 YPbPr Input
  • 1 Composite / S-Video Input with L/R Stereo Audio
  • 1 Microphone Input
  • HDBaseT receiver supports distance up to 230ft [70m]
  • 1 HDMI Output
  • 1 VGA Output with L/R Stereo Audio (For non-HDCP encrypted content)
  • 1 HDMI HDBaseT CAT6 STP receiver included
  • Supports scaling input up to 1080p
  • 2 x 10 Watt Amplifier
  • Built-in Volume Control
  • Front Panel Buttons
  • IR remote control included
  • Support for RS-232 Control
  • TCP/IP port (optional)
  • Backed by KanexPro 3 -Year Parts & Labor Warranty



Specs

specs

Video

Input Connections: (4) HDMI, (4) VGA, (1) YPbPr, (2) Composite, (1) SVideo

Output Connections (1) HDMI, (1) VGA

Input Signal: HDMI, RGBHV, RGBs, RGsB, RsBsGs, NTSC 3.58, NTSC 4.42,PAL, SECAM

Output Signal: HDMI, VGA

Resolution: 1080P @ 1920*1080, HD @ 1360*768, 720P @ 1280*720, WXGA @ 1280*800, XGA @ 1024*768

Bandwidth:

  • HDMI: 4.95Gbps(1.65Gbps per color)
  • C-Video/S-Video: 150MHz
  • YPbPr: 170MHz
  • VGA: 375MHz

HDCP Management: Compliant with High-bandwidth Digital Content Protection(HDCP) with DVI & HDMI standards

Audio

Input Connections: (6) Stereo Audio for line audio, (2) MIC audio Mechanical Power Supply AC Power 100-240V 50/60Hz

Dimensions 19" x 9.25" x 1.73" [483mm x 235mm x 44mm]

Weight: 7.05lbs [3.2kg]

FAQ

Name:
Email Address:
Ask A Question:

   =



Q: May I ask you one question? How can I enable the PIP feature for KanexPro HDSC12D. Could you explain detail? Thanks
A: This scaler does not support PIP, as you can also see on the web page: http://www.kanexpro.com/item/?id=HDSC12D. The only one that supports PIP is the HDSC91D: http://www.kanexpro.com/item/?id=HDSC91D


Diagram

Diagram

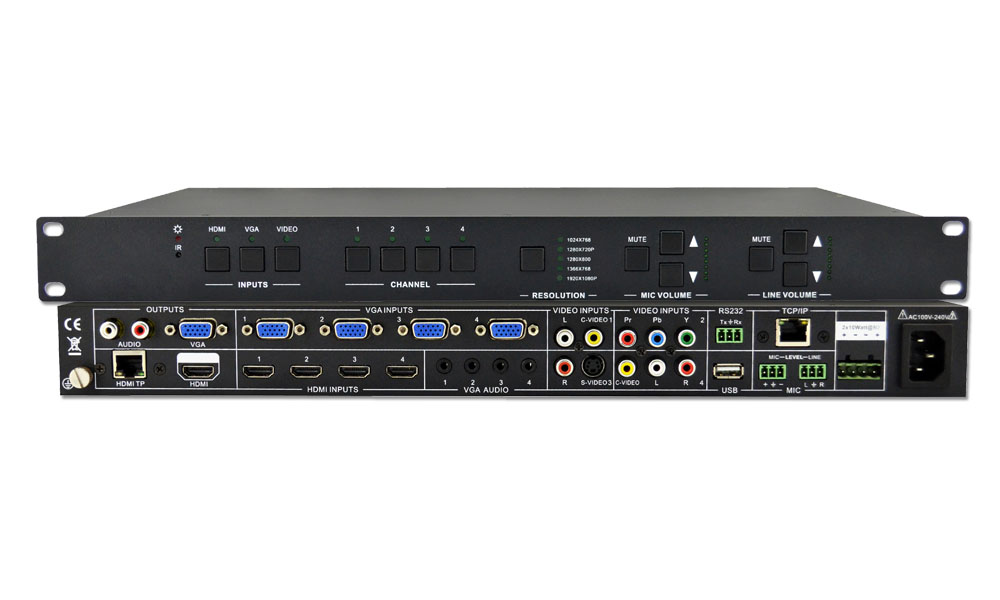

Panel

Panel
