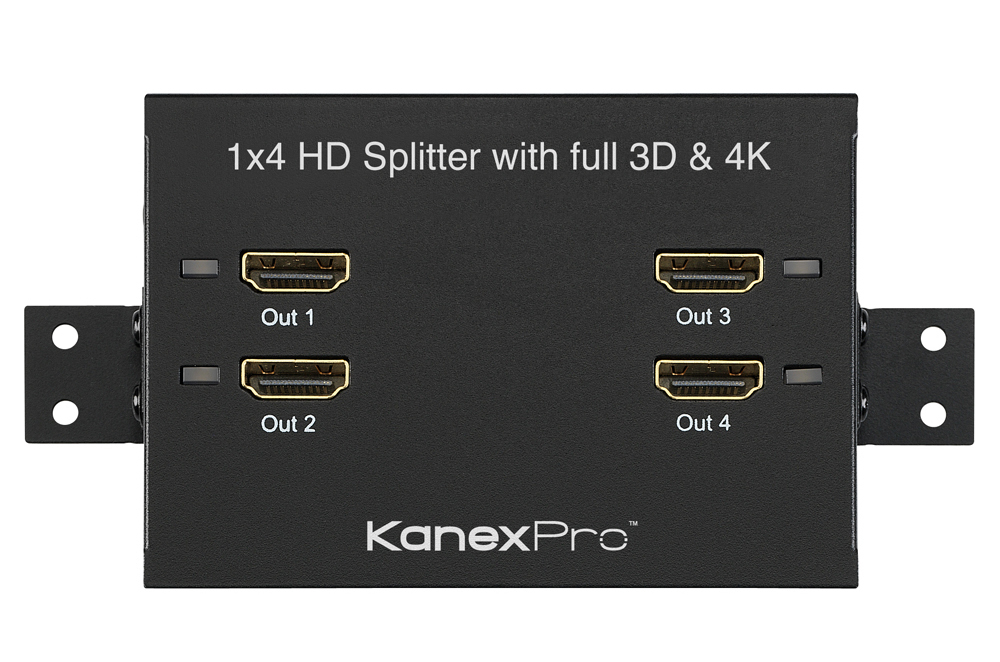

ProBar 1x4 HDMI Splitter with 4K Support

1x4 High Bandwidth HDMI Splitter with 3D & 4K Cinema resolutions
MPN: HD4PTBSP
HD4PTBSP Inquiry

+ Zoom In

Overview

The KanexPro 1x4 ProBar HDMI Splitter with full 3D support is a high-performance distribution amplifier engineered for industry professionals wanting to distribute high-resolution video on four HDMI displays. With no downtime or signal degradation, this HD splitter enables stunning resolutions up to 4K x 2K, 3D support and bandwidth up to 10.2 Gbps.

Fully compliant with EDID and HDCP management the ProBar HDMI splitters can be inetgrated anywhere from digital signage to healthcare AV where high-resolution signals are mission critical for todays applications.

features

  • Distribute high-resolution HDMI signals with audio to 4-displays
  • Supports data rates up to 10.2 Gbps (all channel)
  • Supports full 3D and 4Kx2K resolution
  • Supports full HD 1080p (1920 x 1080@60Hz)
  • Computer resolution up to WUXGA (1920 x1200@60Hz)
  • Supports 5.1, 7.1 Digital Audio and uncompressed LPCM
  • HDCP 1.3 compliant
  • Full EDID support
  • Supports 12-bit per channel (36-bit all channel) Deep color

Specs

specs

Signal Inputs/Output

  • Input DDC Signal: 5 volts p-p (TTL)
  • Maximum Single Link Range: 4k X 2k
  • Output Video: HDMI 1.4 with full 3D and 4Kx2K + HDCP 1.3

Operating Frequency

  • Vertical Frequency Range: 50/60Hz
  • Video Amplifier Bandwidth: 3.4Gbps/340MHz

Resolutions (HDTV)

  • Interlaced (50&60Hz): 480i, 576i, and 1080i
  • Progressive (50&60Hz): 480p, 576p, 720p, 1080p, and 4Kx2K

Power Requirement

  • External Power Supply: 5V DC@ 3A
  • Power consumption (Max): 12W

Mechanical

  • Size (L-W-H): 4.0 in. 2.75 in.1.0in.

Environment

  • Operating Temperature: 0°C to +70°C
  • Operating Humidity: 10% to 85% RH (no condensation)
  • Storage Temperature: -10°C to +80°C

Warranty

  • Limited 1-Year Parts & Labor
